前置条件

在Ubuntu中已经安装了ROS2(这里安装的是rolling)
已经具备在Gazebo中创建机器人模型的能力

创建仓储机器人

生成model.config

为model建立一个文件夹

mkdir -p ~/.gazebo/models/mobile_warehouse_robot

生成并编辑model.config文件

gedit ~/.gazebo/models/mobile_warehouse_robot/model.config

写入以下内容

<?xml version="1.0"?>
<model>
  <name>Mobile Warehouse Robot</name>
  <version>1.0</version>
  <sdf version='1.4'>model.sdf</sdf>

  <author>
    <name>mwf</name>
    <email>figoowen2003@126.com</email>
  </author>

  <description>
    A basic differential drive mobile warehouse robot
  </description>
</model>

下载Mesh文件

Mesh文件让机器人看起来更加的真实
添加Mesh文件的具体教程，参考http://gazebosim.org/tutorials/?tut=attach_meshes
所有的仓储机器人mesh文件都位于http://models.gazebosim.org/

下载步骤：

cd ~/.gazebo/models

```
wget -q -R index.html,*.tar.gz –no-parent -r -x -nH http://models.gazebosim.org/warehouse_robot/


  该网址的页面显示如下

  ![2-robot-daeJPG](如何使用Gazebo和ROS2进行移动机器人仿真/2-robot-daeJPG.jpg)

- 下载文件[Hokuyo Laser Range Finder](https://www.hokuyo-aut.jp/) [mesh file](http://models.gazebosim.org/hokuyo/)

  `cd ~/.gazebo/models`

wget -q -R index.html,*.tar.gz –no-parent -r -x -nH http://models.gazebosim.org/hokuyo/


    该网址的页面显示如下

    ![3-hokuyo-daeJPG](如何使用Gazebo和ROS2进行移动机器人仿真/3-hokuyo-daeJPG.jpg)

## 创建model.sdf

- sdf:  [Simulation Description Format](http://sdformat.org/)这个文件包含了创建一个mobile_warehouse_robot模型所需要的标签

- 步骤：

  - ```
    gedit ~/.gazebo/models/mobile_warehouse_robot/model.sdf

写入以下内容

<?xml version='1.0'?>
<!--
  Gazebo ROS differential drive plugin

  Try sending commands:

    ros2 topic pub /demo/cmd_vel geometry_msgs/Twist '{linear: {x: 0.05}}' -1

    ros2 topic pub /demo/cmd_vel geometry_msgs/Twist '{angular: {z: 0.1}}' -1

  Try listening to odometry:

    ros2 topic echo /demo/odom

  Try listening to TF:

    ros2 run tf2_ros tf2_echo odom chassis

    ros2 run tf2_ros tf2_echo chassis right_wheel

    ros2 run tf2_ros tf2_echo chassis left_wheel
-->
<sdf version='1.4'>
  <model name="mobile_warehouse_robot">
     <!-- If true, physics engine will ignore -->
     <static>false</static>

       <!-- Add the rectangular base of the robot -->
       <link name='chassis'>

         <!--Position of the center will be: -->
         <!--x=0 meters, y=0 meters, z=0.1 meters-->
         <!--Orientation of the center will be: -->
         <!--Roll=0 rad, Pitch=0 rad, Yaw=0 rad -->
         <pose>0 0 .04 0 0 0</pose>

           <!-- Specify the shape for collisions -->
           <collision name='collision'>
             <geometry>
               <box>
                 <!-- Box is 0.4 meters in length -->
                 <!-- 0.2 meters in width -->
                 <!-- 0.1 meters in height -->
                 <size>.4 .2 .1</size>
               </box>
             </geometry>
           </collision>

           <!-- Specify the shape for visualization -->
           <visual name='visual'>
             <pose> 0 0 0.02 0 0 0 </pose>
             <geometry>
               <mesh>
                 <uri>model://warehouse_robot/meshes/robot.dae</uri>
                 <scale>0.9 0.5 0.5 </scale>
               </mesh>
             </geometry>
           </visual>

           <!-- Add a caster wheel -->
           <collision name='caster_collision'>
             <pose>-0.19 0 0 0 0 0</pose>
             <geometry>
               <sphere>
                 <radius>.06</radius>
               </sphere>
             </geometry>

             <surface>
               <friction>
                 <ode>
                   <!-- Coefficients of friction -->
                   <mu>0</mu>
                   <mu2>0</mu2>
                   <!-- Force dependent slip -->
                   <slip1>1.0</slip1>
                   <slip2>1.0</slip2>
                 </ode>
               </friction>
             </surface>
           </collision>

           <visual name='caster_visual'>
             <pose>-0.19 0 0 0 0 0</pose>
             <geometry>
               <sphere>
                 <radius>.06</radius>
               </sphere>
             </geometry>
           </visual>
       </link>

       <!-- Add the left wheel -->
       <link name="left_wheel">
         <pose>0.12 0.19 0.1 0 1.5707 1.5707</pose>
         <collision name="collision">
           <geometry>
             <cylinder>
               <radius>.12</radius>
               <length>.08</length>
             </cylinder>
           </geometry>
         </collision>
         <visual name="visual">
           <geometry>
             <cylinder>
               <radius>.12</radius>
               <length>.08</length>
             </cylinder>
           </geometry>
         </visual>
       </link>

       <!-- Add the right wheel -->
       <link name="right_wheel">
         <pose>0.12 -0.19 0.1 0 1.5707 1.5707</pose>
         <collision name="collision">
           <geometry>
             <cylinder>
               <radius>.12</radius>
               <length>.08</length>
             </cylinder>
           </geometry>
         </collision>
         <visual name="visual">
           <geometry>
             <cylinder>
               <radius>.12</radius>
               <length>.08</length>
             </cylinder>
           </geometry>
         </visual>
       </link>

       <!-- Add the laser range finder -->
       <link name="laser_link">
         <inertial>
           <!-- Mass of the laser range finder in kg -->
           <mass>0.1</mass>
         </inertial>
         <!-- Position is towards the front of the robot -->
         <!-- Laser finder is mounted on top -->
         <pose>0.15 0 0.30 0 0 0</pose>

         <!-- Add a mesh to make it more visually appealing -->
         <visual name="visual">
           <geometry>
             <mesh>
               <uri>model://hokuyo/meshes/hokuyo.dae</uri>
             </mesh>
           </geometry>
         </visual>

         <!-- Collision properties of the base of the laser range finder-->
         <collision name="collision-base">
           <pose>0 0 -0.0145 0 0 0</pose>
           <geometry>
             <box>
               <size>0.05 0.05 0.041</size>
             </box>
           </geometry>
         </collision>
         <!-- Collision properties of the top of the laser range finder-->
         <collision name="collision-top">
           <pose>0 0 0.0205 0 0 0</pose>
           <geometry>
             <cylinder>
               <radius>0.021</radius>
               <length>0.029</length>
             </cylinder>
           </geometry>
         </collision>

         <!-- Describes the type and properties of the sensor -->
	 <sensor name="laser" type="ray">
	   <pose>0.01 0 0.0175 0 -0 0</pose>
           <ray>
             <scan>
               <horizontal>
                 <samples>181</samples>
                 <resolution>1</resolution>
                 <min_angle>-1.57080</min_angle>
                 <max_angle>1.57080</max_angle>
               </horizontal>
             </scan>
             <range>
               <min>0.08</min>
               <max>10</max>
               <resolution>0.05</resolution>
             </range>
           </ray>
           <always_on>1</always_on>
           <update_rate>10</update_rate>
           <visualize>true</visualize>

           <plugin name='laser' filename='libgazebo_ros_ray_sensor.so'>
             <ros>
               <namespace>/demo</namespace>
               <argument>--ros-args --remap ~/out:=scan</argument>
             </ros>
             <output_type>sensor_msgs/LaserScan</output_type>
           </plugin>
	 </sensor>
       </link>

       <!-- Add motor for the left wheel -->
       <joint type="revolute" name="left_wheel_hinge">
         <pose>0 0 -0.03 0 0 0</pose>
         <child>left_wheel</child>
         <parent>chassis</parent>
         <axis>
           <xyz>0 1 0</xyz>
         </axis>
       </joint>

       <!-- Add motor for the right wheel -->
       <joint type="revolute" name="right_wheel_hinge">
         <pose>0 0 0.03 0 0 0</pose>
         <child>right_wheel</child>
         <parent>chassis</parent>
         <axis>
           <xyz>0 1 0</xyz>
         </axis>
       </joint>

       <!-- Connect laser range finder to the robot's body -->
       <joint type="fixed" name="laser_joint">
         <child>laser_link</child>
         <parent>chassis</parent>
       </joint>

       <!-- Controls the differential drive robot -->
       <plugin name='diff_drive' filename='libgazebo_ros_diff_drive.so'>
         <ros>
           <namespace>/demo</namespace>
           <remapping>cmd_vel:=cmd_vel</remapping>
           <remapping>odom:=odom</remapping>
         </ros>

         <!-- wheels -->
         <left_joint>left_wheel_hinge</left_joint>
         <right_joint>right_wheel_hinge</right_joint>

         <!-- kinematics -->
         <wheel_separation>0.26</wheel_separation>
         <wheel_diameter>0.2</wheel_diameter>

         <!-- limits -->
         <max_wheel_torque>20</max_wheel_torque>
         <max_wheel_acceleration>1.0</max_wheel_acceleration>

         <!-- output -->
         <publish_odom>true</publish_odom>
         <publish_odom_tf>true</publish_odom_tf>
         <publish_wheel_tf>true</publish_wheel_tf>

         <odometry_frame>odom</odometry_frame>
         <robot_base_frame>chassis</robot_base_frame>
       </plugin>
  </model>
</sdf>

测试一下你的robot

运行Gazebo

gazebo

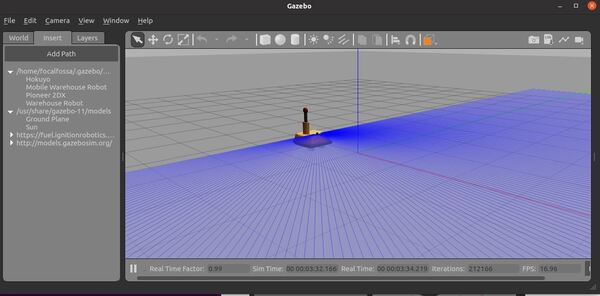

在Gazebo界面的左侧，点击“Insert”的tab页，然后在左侧的列表中，单机”Mobile Warehouse Robot”

集成ROS2和Gazebo

安装gazebo_ros_pkgs

打开一个新的terminal，安装该pkg
我们需要安装完整的包，其中的差速插件（differential drive plugin）能让我们通过ROS2命令控制机器人的速度（此处选择了foxy版对应的pkg，尽量选择最新的版本）

sudo apt install ros-foxy-gazebo-ros-pkgs

测试ROS2和Gazebo的交互

打开一个新的terminal，安装一些额外的工具

sudo apt install ros-foxy-ros-core ros-foxy-geometry2
打开一个新的terminal，加载一个demo robot

gazebo --verbose /opt/ros/foxy/share/gazebo_plugins/worlds/gazebo_ros_diff_drive_demo.world

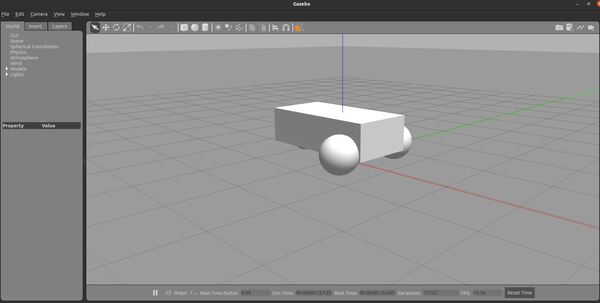

6-should-see-following-vehicleJPG

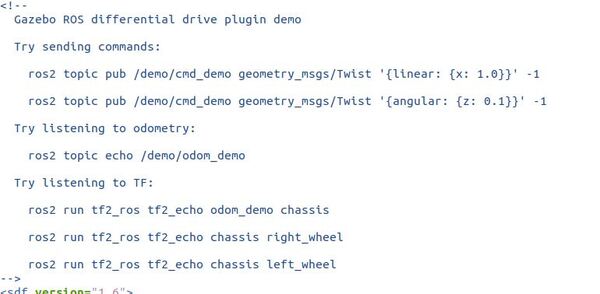

在这个world文件中，提供了一些命令，来控制这个demo robot，如下

5-commands_availableJPG

打开一个新的terminal，输入以下命令

ros2 topic pub /demo/cmd_demo geometry_msgs/Twist '{linear: {x: 1.0}}' -1

机器人将向前方运动

现在，CTRL + C关闭已经打开的Gazebo窗口，重新启动Gazebo

gazebo

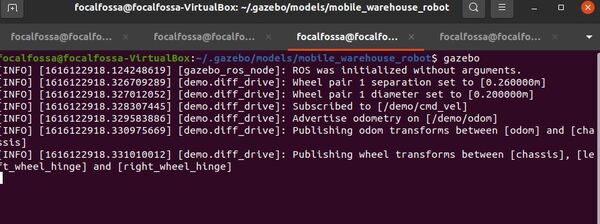

加载之前创建的“Mobile Warehouse Robot”模型，在terminal窗口中，会显示以下信息

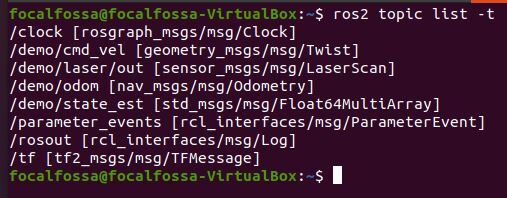

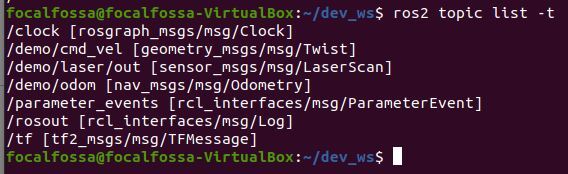

新开一个terminal，查看当前所有的topic

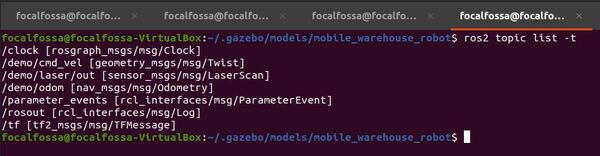

ros2 topic list -t
输入以下命令(/demo/cmd_vel是设置机器人速度的topic)

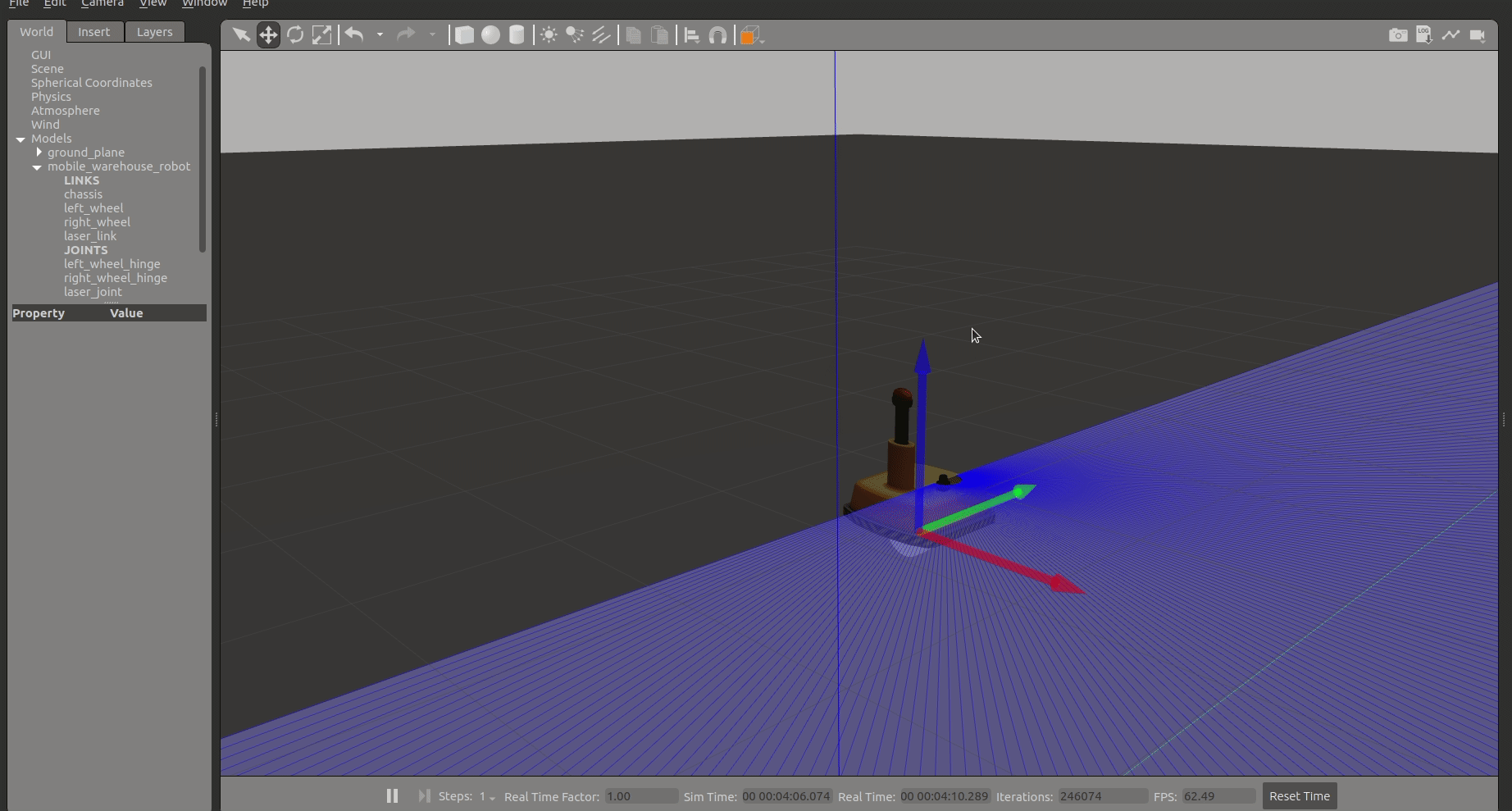

ros2 topic pub /demo/cmd_vel geometry_msgs/Twist '{linear: {x: 0.05}}' -1

建立仓库模型

创建model.config文件

新建文件夹

mkdir -p ~/.gazebo/models/small_warehouse

新建config 文件，写入以下的内容

gedit ~/.gazebo/models/small_warehouse/model.config

<?xml version="1.0"?>
<model>
  <name>Small Warehouse</name>
  <version>1.0</version>
  <sdf version='1.4'>model.sdf</sdf>

  <author>
   <name>Automatic Addison</name>
   <email>automaticaddison@todo.todo</email>
  </author>

  <description>
    A small warehouse.
  </description>
</model>

创建model.sdf文件

新建model.sdf文件，并写入以下内容

gedit ~/.gazebo/models/small_warehouse/model.sdf

<?xml version='1.0'?>
<sdf version='1.5'>
  <model name='small_warehouse'>
    <link name='Wall_10'>
      <pose frame=''>-2.02568 2.92333 0 0 -0 3.14159</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_10_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.8711 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_10_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.8711 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_11'>
      <pose frame=''>-2.887 0.69235 0 0 0 -1.5708</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_11_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>4.62378 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_11_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>4.62378 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_11_clone'>
      <pose frame=''>-4.44208 0.738947 0 0 0 -1.5708</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='ModelPreview_2::Wall_11_clone::Wall_11_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.42809 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_11_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.42809 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_14'>
      <pose frame=''>-0.409926 -1.55115 0 0 -0 3.14159</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_14_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>2.36648 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_14_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>2.36648 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_15'>
      <pose frame=''>-1.53187 -0.513425 0 0 -0 1.5708</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_15_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>2.06622 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_15_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>2.06622 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_19'>
      <pose frame=''>0.837565 0.010614 0 0 -0 3.14159</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_19_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.32777 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_19_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.32777 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_20'>
      <pose frame=''>-0.484506 1.39698 0 0 -0 2.02352</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_20_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>3.22686 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_20_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>3.22686 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_24'>
      <pose frame=''>1.8412 2.79579 0 0 0 -0.948986</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_24_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>3.76645 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_24_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>3.76645 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_24_clone'>
      <pose frame=''>-1.0172 -1.00075 0 0 0 -0.803995</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='ModelPreview_2::Wall_24_clone::Wall_24_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.5 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_24_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>1.5 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_6'>
      <pose frame=''>-0.787021 -2.89307 0 0 -0 0</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_6_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.34986 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_6_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.34986 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_6_clone'>
      <pose frame=''>-0.718431 4.37517 0 0 -0 0</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='ModelPreview_2::Wall_6_clone::Wall_6_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.41907 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_6_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.41907 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='Wall_7'>
      <pose frame=''>2.90228 0.736783 0 0 -0 1.5708</pose>
      <self_collide>0</self_collide>
      <kinematic>0</kinematic>
      <visual name='Wall_7_Visual'>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.42238 0.15 1</size>
          </box>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='Wall_7_Collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0.5 0 -0 0</pose>
        <geometry>
          <box>
            <size>7.42238 0.15 1</size>
          </box>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='link_1'>
      <pose frame=''>1 -1.44562 0.5 0 -0 0</pose>
      <visual name='visual'>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='link_2'>
      <pose frame=''>0.498835 4 0.5 0 -0 0</pose>
      <visual name='visual'>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='link_3'>
      <pose frame=''>0 1.56543 0.5 0 -0 0</pose>
      <visual name='visual'>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <link name='link_4'>
      <pose frame=''>2.54621 1.57728 0.5 0 -0 0</pose>
      <visual name='visual'>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <material>
          <script>
            <uri>file://media/materials/scripts/gazebo.material</uri>
            <name>Gazebo/Grey</name>
          </script>
          <ambient>1 0.764706 0.305882 1</ambient>
          <diffuse>0.7 0.7 0.7 1</diffuse>
          <specular>0.01 0.01 0.01 1</specular>
          <emissive>0 0 0 1</emissive>
          <shader type='pixel'/>
        </material>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
        <cast_shadows>1</cast_shadows>
        <transparency>0</transparency>
      </visual>
      <collision name='collision'>
        <laser_retro>0</laser_retro>
        <max_contacts>10</max_contacts>
        <pose frame=''>0 0 0 0 -0 0</pose>
        <geometry>
          <cylinder>
            <radius>0.5</radius>
            <length>1</length>
          </cylinder>
        </geometry>
        <surface>
          <friction>
            <ode>
              <mu>1</mu>
              <mu2>1</mu2>
              <fdir1>0 0 0</fdir1>
              <slip1>0</slip1>
              <slip2>0</slip2>
            </ode>
          </friction>
          <bounce>
            <restitution_coefficient>0</restitution_coefficient>
            <threshold>1e+06</threshold>
          </bounce>
          <contact>
            <collide_without_contact>0</collide_without_contact>
            <collide_without_contact_bitmask>1</collide_without_contact_bitmask>
            <collide_bitmask>1</collide_bitmask>
            <ode>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
              <max_vel>0.01</max_vel>
              <min_depth>0</min_depth>
            </ode>
            <bullet>
              <split_impulse>1</split_impulse>
              <split_impulse_penetration_threshold>-0.01</split_impulse_penetration_threshold>
              <soft_cfm>0</soft_cfm>
              <soft_erp>0.2</soft_erp>
              <kp>1e+13</kp>
              <kd>1</kd>
            </bullet>
          </contact>
        </surface>
      </collision>
    </link>
    <static>1</static>
    <allow_auto_disable>1</allow_auto_disable>
  </model>
</sdf>

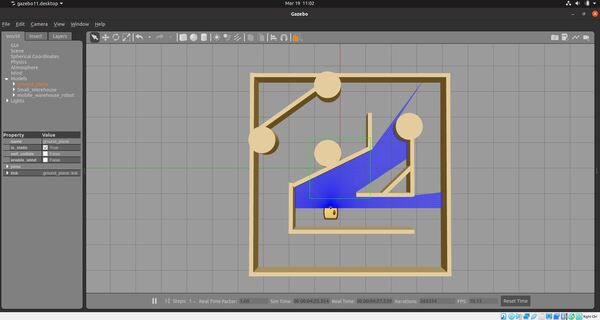

测试仓库模型

打开terminal，输入gazebo
在“insert”标签下，点击“Small Warehouse”

使用ROS2启动机器人和仓库（python版）

创建package

打开一个新的terminal，新建workspace(以dev_ws为例)

mkdir -p ~/dev_ws/src

cd ~/dev_ws/src
创建名为warehouse_robot_spawner_pkg的功能包

ros2 pkg create --build-type ament_python warehouse_robot_spawner_pkg

package的初始设置

查看功能包目录中的内容

cd ~/dev_ws/src/warehouse_robot_spawner_pkg

dir

编辑package.xml文件，写入以下内容

<?xml version="1.0"?>
<?xml-model href="http://download.ros.org/schema/package_format3.xsd" schematypens="http://www.w3.org/2001/XMLSchema"?>
<package format="3">
  <name>warehouse_robot_spawner_pkg</name>
  <version>0.0.0</version>
  <description>how to spawn a mobile robot in warehouse</description>
  <maintainer email="figoowen2003@126.com">ubuntu-ros</maintainer>
  <license>Apache License 2.0</license>

  <test_depend>ament_copyright</test_depend>
  <test_depend>ament_flake8</test_depend>
  <test_depend>ament_pep257</test_depend>
  <test_depend>python3-pytest</test_depend>

  <export>
    <build_type>ament_python</build_type>
  </export>
</package>

编辑setup.py文件，写入以下内容

import os # Operating system library
from glob import glob # Handles file path names
from setuptools import setup # Facilitates the building of packages

package_name = 'warehouse_robot_spawner_pkg'

# Path of the current directory
cur_directory_path = os.path.abspath(os.path.dirname(__file__))

setup(
    name=package_name,
    version='0.0.0',
    packages=[package_name],
    data_files=[
        ('share/ament_index/resource_index/packages',
            ['resource/' + package_name]),
        ('share/' + package_name, ['package.xml']),

        # Path to the launch file
        (os.path.join('share', package_name,'launch'), glob('launch/*.launch.py')),

        # Path to the world file
        (os.path.join('share', package_name,'worlds/'), glob('./worlds/*')),

        # Path to the warehouse sdf file
        (os.path.join('share', package_name,'models/small_warehouse/'), glob('./models/small_warehouse/*')),

        # Path to the mobile robot sdf file
        (os.path.join('share', package_name,'models/mobile_warehouse_robot/'), glob('./models/mobile_warehouse_robot/*')),

        # Path to the world file (i.e. warehouse + global environment)
        (os.path.join('share', package_name,'models/'), glob('./worlds/*')),
    ],
    install_requires=['setuptools'],
    zip_safe=True,
    maintainer='focalfossa',
    maintainer_email='focalfossa@todo.todo',
    description='TODO: Package description',
    license='TODO: License declaration',
    tests_require=['pytest'],
    entry_points={
        'console_scripts': [
          'spawn_demo = warehouse_robot_spawner_pkg.spawn_demo:main'
        ],
    },
)

从~/.gazebo/models/路径下拷贝机器人模型和仓库模型

cd ~/.gazebo/models

cp -r mobile_warehouse_robot ~/dev_ws/src/warehouse_robot_spawner_pkg/models

cp -r small_warehouse ~/dev_ws/src/warehouse_robot_spawner_pkg/models

同时拷贝下载的meshes文件

cp -r hokuyo ~/dev_ws/src/warehouse_robot_spawner_pkg/models

cp -r warehouse_robot ~/dev_ws/src/warehouse_robot_spawner_pkg/models

检查以下所有的model都拷贝成功

cd ~/dev_ws/src/warehouse_robot_spawner_pkg/models

dir

创建后缀名为world的sdf文件

mkdir ~/dev_ws/src/warehouse_robot_spawner_pkg/worlds

cd ~/dev_ws/src/warehouse_robot_spawner_pkg/worlds

gedit warehouse.world
写入以下内容

<sdf version='1.4'>
  <world name='default'>
    <light name='sun' type='directional'>
      <cast_shadows>1</cast_shadows>
      <pose>0 0 10 0 -0 0</pose>
      <diffuse>0.8 0.8 0.8 1</diffuse>
      <specular>0.2 0.2 0.2 1</specular>
      <attenuation>
        <range>1000</range>
        <constant>0.9</constant>
        <linear>0.01</linear>
        <quadratic>0.001</quadratic>
      </attenuation>
      <direction>0.5 0.1 -0.9</direction>
    </light>
        <model name='ground_plane'>
      <static>1</static>
      <link name='link'>
        <collision name='collision'>
          <geometry>
            <plane>
              <normal>0 0 1</normal>
              <size>100 100</size>
            </plane>
          </geometry>
          <surface>
            <friction>
              <ode>
                <mu>100</mu>
                <mu2>50</mu2>
              </ode>
            </friction>
            <bounce/>
            <contact>
              <ode/>
            </contact>
          </surface>
          <max_contacts>10</max_contacts>
        </collision>
        <visual name='visual'>
          <cast_shadows>0</cast_shadows>
          <geometry>
            <plane>
              <normal>0 0 1</normal>
              <size>100 100</size>
            </plane>
          </geometry>
          <material>
            <script>
              <uri>file://media/materials/scripts/gazebo.material</uri>
              <name>Gazebo/Grey</name>
            </script>
          </material>
        </visual>
        <velocity_decay>
          <linear>0</linear>
          <angular>0</angular>
        </velocity_decay>
        <self_collide>0</self_collide>
        <kinematic>0</kinematic>
        <gravity>1</gravity>
      </link>
    </model>
    <scene>
      <ambient>0.4 0.4 0.4 1</ambient>
      <background>0.7 0.7 0.7 1</background>
      <shadows>0</shadows>
    </scene>
    <physics type='ode'>
      <max_step_size>0.01</max_step_size>
      <real_time_factor>1</real_time_factor>
      <real_time_update_rate>0</real_time_update_rate>
      <gravity>0 0 -9.8</gravity>
    </physics>
    <state world_name='default'>
      <sim_time>0 0</sim_time>
      <real_time>0 44986</real_time>
      <wall_time>1377677575 940727583</wall_time>
    </state>
    <gui fullscreen='0'>
      <camera name='user_camera'>
        <pose>2.6 -1.69 12.2 0 1.56 3.14</pose>
        <view_controller>orbit</view_controller>
      </camera>
    </gui>
    <!-- A simple warehouse -->
    <include>
      <uri>model://small_warehouse</uri>
      <pose>2.4 -2.1 0 0 0 0</pose>
    </include>

    <!-- mobile_warehouse_robot
      <include>
        <pose>0 0 0.33 0 0 0</pose>
        <uri>model://mobile_warehouse_robot</uri>
      </include>   -->
  </world>
</sdf>

创建一个世界孵化器的节点（Node）

cd ~/dev_ws/src/warehouse_robot_spawner_pkg/warehouse_robot_spawner_pkg/

新建名为spawn_demo.py的文件

gedit spawn_demo.py

写入以下内容

"""
ROS 2 node to spawn a mobile robot inside a warehouse.

Author:
  - Addison Sears-Collins
  - https://automaticaddison.com
"""
import os # Operating system library
import sys # Python runtime environment library
import rclpy # ROS Client Library for Python

# Package Management Library
from ament_index_python.packages import get_package_share_directory

# Gazebo's service to spawn a robot
from gazebo_msgs.srv import SpawnEntity

def main():

    """ Main for spawning a robot node """
    # Get input arguments from user
    argv = sys.argv[1:]

    # Start node
    rclpy.init()

    # Get the file path for the robot model
    sdf_file_path = os.path.join(
        get_package_share_directory("warehouse_robot_spawner_pkg"), "models",
        "mobile_warehouse_robot", "model.sdf")

    # Create the node
    node = rclpy.create_node("entity_spawner")

    # Show progress in the terminal window
    node.get_logger().info(
        'Creating Service client to connect to `/spawn_entity`')
    client = node.create_client(SpawnEntity, "/spawn_entity")

    # Get the spawn_entity service
    node.get_logger().info("Connecting to `/spawn_entity` service...")
    if not client.service_is_ready():
        client.wait_for_service()
        node.get_logger().info("...connected!")

    # Get path to the robot
    sdf_file_path = os.path.join(
        get_package_share_directory("warehouse_robot_spawner_pkg"), "models",
        "mobile_warehouse_robot", "model.sdf")

    # Show file path
    print(f"robot_sdf={sdf_file_path}")

    # Set data for request
    request = SpawnEntity.Request()
    request.name = argv[0]
    request.xml = open(sdf_file_path, 'r').read()
    request.robot_namespace = argv[1]
    request.initial_pose.position.x = float(argv[2])
    request.initial_pose.position.y = float(argv[3])
    request.initial_pose.position.z = float(argv[4])

    node.get_logger().info("Sending service request to `/spawn_entity`")
    future = client.call_async(request)
    rclpy.spin_until_future_complete(node, future)
    if future.result() is not None:
        print('response: %r' % future.result())
    else:
        raise RuntimeError(
            'exception while calling service: %r' % future.exception())

    node.get_logger().info("Done! Shutting down node.")
    node.destroy_node()
    rclpy.shutdown()

if __name__ == "__main__":
    main()

创建launch文件

mkdir ~/dev_ws/src/warehouse_robot_spawner_pkg/launch/

cd ~/dev_ws/src/warehouse_robot_spawner_pkg/launch/

新建名为gazebo_world.launch.py的文件，写入以下内容

# Copyright 2019 Open Source Robotics Foundation, Inc.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

"""
Demo for spawn_entity.
Launches Gazebo and spawns a model
"""
# A bunch of software packages that are needed to launch ROS2
import os
from launch import LaunchDescription
from launch.actions import IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import ThisLaunchFileDir,LaunchConfiguration
from launch_ros.actions import Node
from launch.actions import ExecuteProcess
from ament_index_python.packages import get_package_share_directory

def generate_launch_description():
    use_sim_time = LaunchConfiguration('use_sim_time', default='True')
    world_file_name = 'warehouse.world'
    pkg_dir = get_package_share_directory('warehouse_robot_spawner_pkg')

    os.environ["GAZEBO_MODEL_PATH"] = os.path.join(pkg_dir, 'models')

    world = os.path.join(pkg_dir, 'worlds', world_file_name)
    launch_file_dir = os.path.join(pkg_dir, 'launch')

    gazebo = ExecuteProcess(
            cmd=['gazebo', '--verbose', world, '-s', 'libgazebo_ros_init.so',
            '-s', 'libgazebo_ros_factory.so'],
            output='screen')

    #GAZEBO_MODEL_PATH has to be correctly set for Gazebo to be able to find the model
    #spawn_entity = Node(package='gazebo_ros', node_executable='spawn_entity.py',
    #                    arguments=['-entity', 'demo', 'x', 'y', 'z'],
    #                    output='screen')
    spawn_entity = Node(package='warehouse_robot_spawner_pkg', executable='spawn_demo',
                        arguments=['WarehouseBot', 'demo', '-1.5', '-4.0', '0.0'],
                        output='screen')

    return LaunchDescription([
        gazebo,
        spawn_entity,
    ])

编译功能包

cd ~/dev_ws/

安装setuptools

sudo pip3 install setuptools

编译

colcon build --packages-select warehouse_robot_spawner_pkg

启动

cd ~/dev_ws

ros2 launch warehouse_robot_spawner_pkg gazebo_world.launch.py

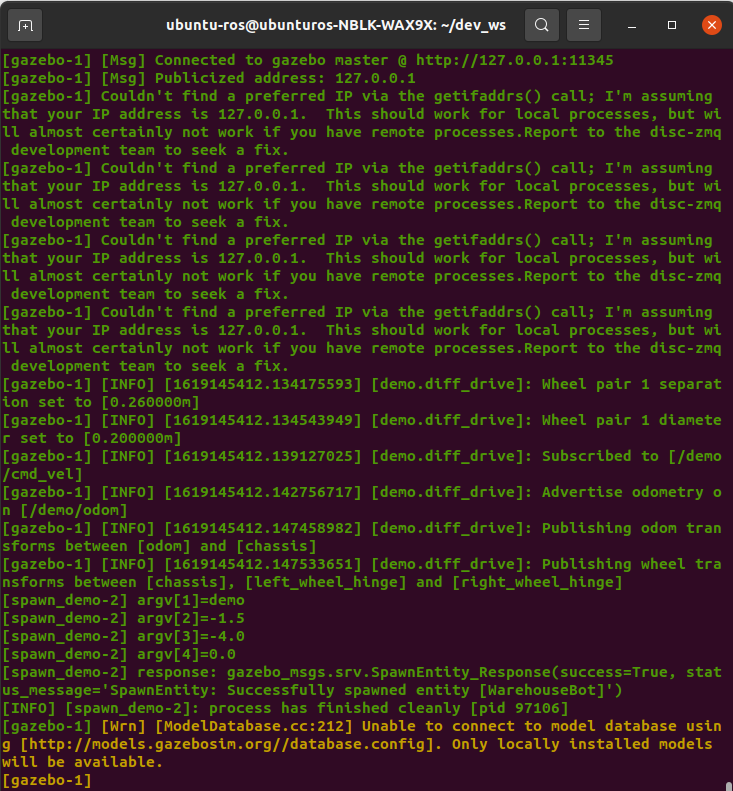

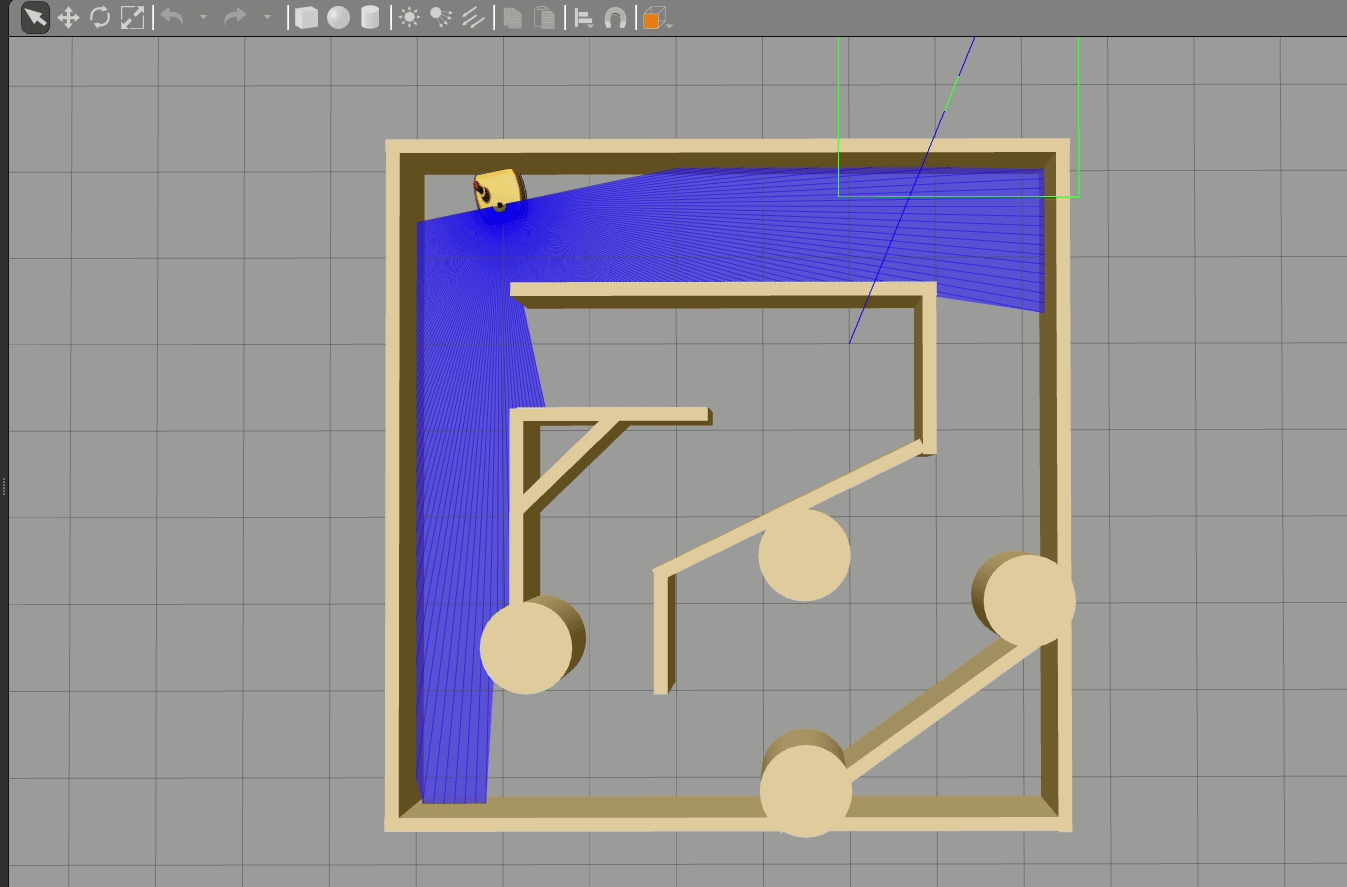

Peek 2021-04-23 10-38.gif

查看当前的topic

ros2 topic list -t

16-ros2-topic-listJPG

让机器人在仓库中运动起来（Python版）

创建运动和控制的功能包

cd ~/dev_ws/src

ros2 pkg create --build-type ament_python warehouse_robot_controller_pkg

功能包的基本配置

cd ~/dev_ws/src/warehouse_robot_controller_pkg

gedit package.xml

写入以下内容

<?xml version="1.0"?>
<?xml-model href="http://download.ros.org/schema/package_format3.xsd" schematypens="http://www.w3.org/2001/XMLSchema"?>
<package format="3">
  <name>warehouse_robot_controller_pkg</name>
  <version>0.0.0</version>
  <description>Controls the motion of a warehouse mobile robot.</description>
  <maintainer email="automaticaddison@todo.todo">focalfossa</maintainer>
  <license>TODO: License declaration</license>

  <test_depend>ament_copyright</test_depend>
  <test_depend>ament_flake8</test_depend>
  <test_depend>ament_pep257</test_depend>
  <test_depend>python3-pytest</test_depend>

  <export>
    <build_type>ament_python</build_type>
  </export>
</package>

gedit setup.py

写入以下内容

import os # Operating system library
from glob import glob # Handles file path names
from setuptools import setup

package_name = 'warehouse_robot_controller_pkg'

setup(
    name=package_name,
    version='0.0.0',
    packages=[package_name],
    data_files=[
        ('share/ament_index/resource_index/packages',
            ['resource/' + package_name]),
        ('share/' + package_name, ['package.xml']),

        # Path to the launch file
        (os.path.join('share', package_name,'launch'), glob('launch/*.launch.py')),
    ],
    install_requires=['setuptools'],
    zip_safe=True,
    maintainer='ubuntu-ros',
    maintainer_email='figoowen2003@126.com',
    description='Control the motion of a warehouse mobile robot',
    license='Apache License 2.0',
    tests_require=['pytest'],
    entry_points={
        'console_scripts': [
          'robot_controller = warehouse_robot_controller_pkg.robot_controller:main',
          'robot_estimator = warehouse_robot_controller_pkg.robot_estimator:main',
        ],
    },
)

创建名为Estimator的节点（node）

cd ~/dev_ws/src/warehouse_robot_controller_pkg/warehouse_robot_controller_pkg/

gedit robot_estimator.py

写入以下内容

# Author: Addison Sears-Collins
# Date: March 19, 2021
# ROS Version: ROS 2 Foxy Fitzroy

# Python math library
import math

# ROS client library for Python
import rclpy

# Used to create nodes
from rclpy.node import Node

# Twist is linear and angular velocity
from geometry_msgs.msg import Twist

# Position, orientation, linear velocity, angular velocity
from nav_msgs.msg import Odometry

# Handles laser distance scan to detect obstacles
from sensor_msgs.msg import LaserScan

# Used for laser scan
from rclpy.qos import qos_profile_sensor_data

# Enable use of std_msgs/Float64MultiArray message
from std_msgs.msg import Float64MultiArray

# Scientific computing library for Python
import numpy as np

class Estimator(Node):
  """
  Class constructor to set up the node
  """
  def __init__(self):

    ############## INITIALIZE ROS PUBLISHERS AND SUBSCRIBERS ######
    super().__init__('Estimator')

    # Create a subscriber
    # This node subscribes to messages of type
    # nav_msgs/Odometry (i.e. position and orientation of the robot)
    self.odom_subscriber = self.create_subscription(
                           Odometry,
                           '/demo/odom',
                           self.odom_callback,
                           10)

    # Create a subscriber
    # This node subscribes to messages of type
    # geometry_msgs/Twist.msg. We are listening to the velocity commands here.
    # The maximum number of queued messages is 10.
    self.velocity_subscriber = self.create_subscription(
                               Twist,
                               '/demo/cmd_vel',
                               self.velocity_callback,
                               10)

    # Create a publisher
    # This node publishes the estimated position (x, y, yaw)
    # The type of message is std_msgs/Float64MultiArray
    self.publisher_state_est = self.create_publisher(
                               Float64MultiArray,
                               '/demo/state_est',
                               10)

  def odom_callback(self, msg):
    """
    Receive the odometry information containing the position and orientation
    of the robot in the global reference frame.
    The position is x, y, z.
    The orientation is a x,y,z,w quaternion.
    """
    roll, pitch, yaw = self.euler_from_quaternion(
      msg.pose.pose.orientation.x,
      msg.pose.pose.orientation.y,
      msg.pose.pose.orientation.z,
      msg.pose.pose.orientation.w)

    obs_state_vector_x_y_yaw = [msg.pose.pose.position.x,msg.pose.pose.position.y,yaw]

    # Publish the estimated state (x position, y position, yaw angle)
    self.publish_estimated_state(obs_state_vector_x_y_yaw)

  def publish_estimated_state(self, state_vector_x_y_yaw):
    """
    Publish the estimated pose (position and orientation) of the
    robot to the '/demo/state_est' topic.
    :param: state_vector_x_y_yaw [x, y, yaw]
    x is in meters, y is in meters, yaw is in radians
    """
    msg = Float64MultiArray()
    msg.data = state_vector_x_y_yaw
    self.publisher_state_est.publish(msg)

  def euler_from_quaternion(self, x, y, z, w):
    """
    Convert a quaternion into euler angles (roll, pitch, yaw)
    roll is rotation around x in radians (counterclockwise)
    pitch is rotation around y in radians (counterclockwise)
    yaw is rotation around z in radians (counterclockwise)
    """
    t0 = +2.0 * (w * x + y * z)
    t1 = +1.0 - 2.0 * (x * x + y * y)
    roll_x = math.atan2(t0, t1)

    t2 = +2.0 * (w * y - z * x)
    t2 = +1.0 if t2 > +1.0 else t2
    t2 = -1.0 if t2 < -1.0 else t2
    pitch_y = math.asin(t2)

    t3 = +2.0 * (w * z + x * y)
    t4 = +1.0 - 2.0 * (y * y + z * z)
    yaw_z = math.atan2(t3, t4)

    return roll_x, pitch_y, yaw_z # in radians

  def velocity_callback(self, msg):
    """
    Listen to the velocity commands (linear forward velocity
    in the x direction in the robot's reference frame and
    angular velocity (yaw rate) around the robot's z-axis.
    [v,yaw_rate]
    [meters/second, radians/second]
    """
    # Forward velocity in the robot's reference frame
    v = msg.linear.x

    # Angular velocity around the robot's z axis
    yaw_rate = msg.angular.z

def main(args=None):
    """
    Entry point for the program.
    """
    # Initialize rclpy library
    rclpy.init(args=args)

    # Create the node
    estimator = Estimator()

    # Spin the node so the callback function is called.
    # Pull messages from any topics this node is subscribed to.
    # Publish any pending messages to the topics.
    rclpy.spin(estimator)

    # Destroy the node explicitly
    # (optional - otherwise it will be done automatically
    # when the garbage collector destroys the node object)
    estimator.destroy_node()

    # Shutdown the ROS client library for Python
    rclpy.shutdown()

if __name__ == '__main__':
    main()

创建名为Controller的节点

gedit robot_controller.py

写入以下内容

# Author: Addison Sears-Collins
# Date: March 19, 2021
# ROS Version: ROS 2 Foxy Fitzroy

############## IMPORT LIBRARIES #################
# Python math library
import math

# ROS client library for Python
import rclpy

# Enables pauses in the execution of code
from time import sleep

# Used to create nodes
from rclpy.node import Node

# Enables the use of the string message type
from std_msgs.msg import String

# Twist is linear and angular velocity
from geometry_msgs.msg import Twist

# Handles LaserScan messages to sense distance to obstacles (i.e. walls)
from sensor_msgs.msg import LaserScan

# Handle Pose messages
from geometry_msgs.msg import Pose

# Handle float64 arrays
from std_msgs.msg import Float64MultiArray

# Handles quality of service for LaserScan data
from rclpy.qos import qos_profile_sensor_data

# Scientific computing library
import numpy as np

class Controller(Node):
  """
  Create a Controller class, which is a subclass of the Node
  class for ROS2.
  """
  def __init__(self):
    """
    Class constructor to set up the node
    """
    ##################### ROS SETUP ####################################################
    # Initiate the Node class's constructor and give it a name
    super().__init__('Controller')

    # Create a subscriber
    # This node subscribes to messages of type Float64MultiArray
    # over a topic named: /demo/state_est
    # The message represents the current estimated state:
    #   [x, y, yaw]
    # The callback function is called as soon as a message
    # is received.
    # The maximum number of queued messages is 10.
    self.subscription = self.create_subscription(
                        Float64MultiArray,
                        '/demo/state_est',
                        self.state_estimate_callback,
                        10)
    self.subscription  # prevent unused variable warning

    # Create a subscriber
    # This node subscribes to messages of type
    # sensor_msgs/LaserScan
    self.scan_subscriber = self.create_subscription(
                           LaserScan,
                           '/demo/laser/out',
                           self.scan_callback,
                           qos_profile=qos_profile_sensor_data)

    # Create a publisher
    # This node publishes the desired linear and angular velocity of the robot (in the
    # robot chassis coordinate frame) to the /demo/cmd_vel topic. Using the diff_drive
    # plugin enables the robot model to read this /demo/cmd_vel topic and execute
    # the motion accordingly.
    self.publisher_ = self.create_publisher(
                      Twist,
                      '/demo/cmd_vel',
                      10)

    # Initialize the LaserScan sensor readings to some large value
    # Values are in meters.
    self.left_dist = 999999.9 # Left
    self.leftfront_dist = 999999.9 # Left-front
    self.front_dist = 999999.9 # Front
    self.rightfront_dist = 999999.9 # Right-front
    self.right_dist = 999999.9 # Right

    ################### ROBOT CONTROL PARAMETERS ##################
    # Maximum forward speed of the robot in meters per second
    # Any faster than this and the robot risks falling over.
    self.forward_speed = 0.025

    # Current position and orientation of the robot in the global
    # reference frame
    self.current_x = 0.0
    self.current_y = 0.0
    self.current_yaw = 0.0

    ############# WALL FOLLOWING PARAMETERS #######################
    # Finite states for the wall following mode
    #  "turn left": Robot turns towards the left
    #  "search for wall": Robot tries to locate the wall
    #  "follow wall": Robot moves parallel to the wall
    self.wall_following_state = "turn left"

    # Set turning speeds (to the left) in rad/s
    # These values were determined by trial and error.
    self.turning_speed_wf_fast = 3.0  # Fast turn
    self.turning_speed_wf_slow = 0.05 # Slow turn

    # Wall following distance threshold.
    # We want to try to keep within this distance from the wall.
    self.dist_thresh_wf = 0.50 # in meters

    # We don't want to get too close to the wall though.
    self.dist_too_close_to_wall = 0.19 # in meters

  def state_estimate_callback(self, msg):
    """
    Extract the position and orientation data.
    This callback is called each time
    a new message is received on the '/demo/state_est' topic
    """
    # Update the current estimated state in the global reference frame
    curr_state = msg.data
    self.current_x = curr_state[0]
    self.current_y = curr_state[1]
    self.current_yaw = curr_state[2]

    # Command the robot to keep following the wall
    self.follow_wall()

  def scan_callback(self, msg):
    """
    This method gets called every time a LaserScan message is
    received on the '/demo/laser/out' topic
    """
    # Read the laser scan data that indicates distances
    # to obstacles (e.g. wall) in meters and extract
    # 5 distinct laser readings to work with.
    # Each reading is separated by 45 degrees.
    # Assumes 181 laser readings, separated by 1 degree.
    # (e.g. -90 degrees to 90 degrees....0 to 180 degrees)

    #number_of_laser_beams = str(len(msg.ranges))
    self.left_dist = msg.ranges[180]
    self.leftfront_dist = msg.ranges[135]
    self.front_dist = msg.ranges[90]
    self.rightfront_dist = msg.ranges[45]
    self.right_dist = msg.ranges[0]

  def follow_wall(self):
    """
    This method causes the robot to follow the boundary of a wall.
    """
    # Create a geometry_msgs/Twist message
    msg = Twist()
    msg.linear.x = 0.0
    msg.linear.y = 0.0
    msg.linear.z = 0.0
    msg.angular.x = 0.0
    msg.angular.y = 0.0
    msg.angular.z = 0.0

    # Logic for following the wall
    # >d means no wall detected by that laser beam
    # <d means an wall was detected by that laser beam
    d = self.dist_thresh_wf

    if self.leftfront_dist > d and self.front_dist > d and self.rightfront_dist > d:
      self.wall_following_state = "search for wall"
      msg.linear.x = self.forward_speed
      msg.angular.z = -self.turning_speed_wf_slow # turn right to find wall

    elif self.leftfront_dist > d and self.front_dist < d and self.rightfront_dist > d:
      self.wall_following_state = "turn left"
      msg.angular.z = self.turning_speed_wf_fast

    elif (self.leftfront_dist > d and self.front_dist > d and self.rightfront_dist < d):
      if (self.rightfront_dist < self.dist_too_close_to_wall):
        # Getting too close to the wall
        self.wall_following_state = "turn left"
        msg.linear.x = self.forward_speed
        msg.angular.z = self.turning_speed_wf_fast
      else:
        # Go straight ahead
        self.wall_following_state = "follow wall"
        msg.linear.x = self.forward_speed

    elif self.leftfront_dist < d and self.front_dist > d and self.rightfront_dist > d:
      self.wall_following_state = "search for wall"
      msg.linear.x = self.forward_speed
      msg.angular.z = -self.turning_speed_wf_slow # turn right to find wall

    elif self.leftfront_dist > d and self.front_dist < d and self.rightfront_dist < d:
      self.wall_following_state = "turn left"
      msg.angular.z = self.turning_speed_wf_fast

    elif self.leftfront_dist < d and self.front_dist < d and self.rightfront_dist > d:
      self.wall_following_state = "turn left"
      msg.angular.z = self.turning_speed_wf_fast

    elif self.leftfront_dist < d and self.front_dist < d and self.rightfront_dist < d:
      self.wall_following_state = "turn left"
      msg.angular.z = self.turning_speed_wf_fast

    elif self.leftfront_dist < d and self.front_dist > d and self.rightfront_dist < d:
      self.wall_following_state = "search for wall"
      msg.linear.x = self.forward_speed
      msg.angular.z = -self.turning_speed_wf_slow # turn right to find wall

    else:
      pass

    # Send velocity command to the robot
    self.publisher_.publish(msg)

def main(args=None):

    # Initialize rclpy library
    rclpy.init(args=args)

    # Create the node
    controller = Controller()

    # Spin the node so the callback function is called
    # Pull messages from any topics this node is subscribed to
    # Publish any pending messages to the topics
    rclpy.spin(controller)

    # Destroy the node explicitly
    # (optional - otherwise it will be done automatically
    # when the garbage collector destroys the node object)
    controller.destroy_node()

    # Shutdown the ROS client library for Python
    rclpy.shutdown()

if __name__ == '__main__':
    main()

创建launch文件

mkdir ~/dev_ws/src/warehouse_robot_controller_pkg/launch/

cd ~/dev_ws/src/warehouse_robot_controller_pkg/launch/

新建名为controller_estimator.launch.py的文件

gedit controller_estimator.launch.py

写入以下内容

import os
from launch import LaunchDescription
from launch_ros.actions import Node


def generate_launch_description():

  return LaunchDescription([
    Node(package='warehouse_robot_controller_pkg', executable='robot_controller',
      output='screen'),
    Node(package='warehouse_robot_controller_pkg', executable='robot_estimator',
      output='screen'),
  ])

编译功能包

cd ~/dev_ws/

colcon build --packages-select warehouse_robot_controller_pkg

运行

新开一个terminal，依次输入以下命令，启动world孵化器

cd ~/dev_ws/

ros2 launch warehouse_robot_spawner_pkg gazebo_world.launch.py

再打开一个terminal，启动控制器

cd ~/dev_ws/

ros2 launch warehouse_robot_controller_pkg controller_estimator.launch.py

实际运行效果如下

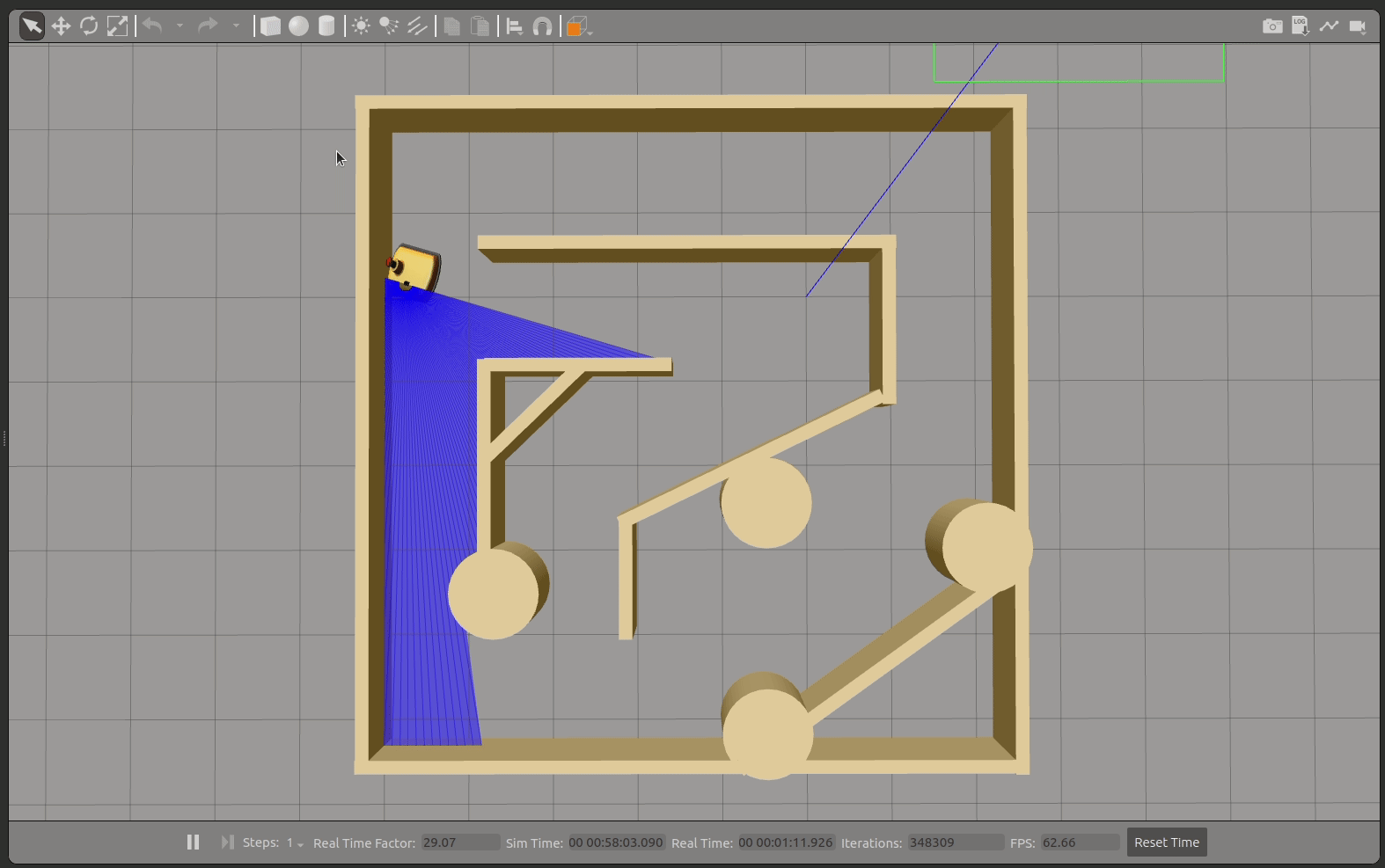

Peek 2021-04-24 10-38.gif

查看topic

ros2 topic list -t

18-topic-listJPG

手动控制机器人（Python版）

安装turtlebot3功能包（目前是foxy版）

sudo apt install ros-foxy-turtlebot3*

详细信息，参考链接https://navigation.ros.org/getting_started/index.html
新开一个terminal，启动spawner

ros2 launch warehouse_robot_spawner_pkg gazebo_world.launch.py
再开一个terminal，输入remap操作，将键盘命令从发往/cmd_vel变更为发往/demo/cmd_vel

export TURTLEBOT3_MODEL=burger

ros2 run turtlebot3_teleop teleop_keyboard --ros-args --remap /cmd_vel:=/demo/cmd_vel

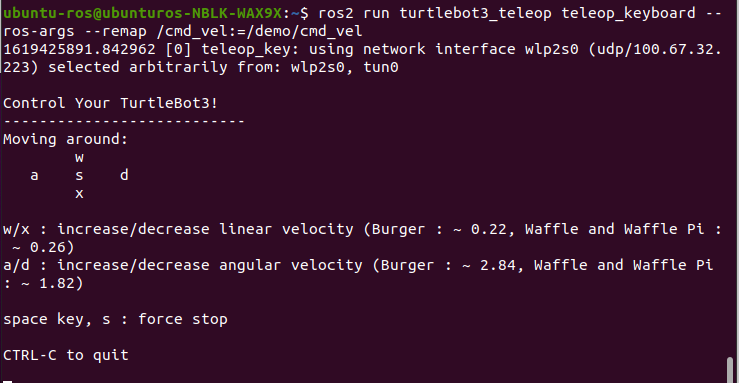

如何使用Gazebo和ROS2进行移动机器人仿真

前置条件

创建仓储机器人

生成model.config

下载Mesh文件

测试一下你的robot

集成ROS2和Gazebo

安装gazebo_ros_pkgs

测试ROS2和Gazebo的交互

建立仓库模型

创建model.config文件

创建model.sdf文件

测试仓库模型

使用ROS2启动机器人和仓库（python版）

创建package

package的初始设置

创建一个世界孵化器的节点（Node）

创建launch文件

编译功能包

启动

让机器人在仓库中运动起来（Python版）

创建运动和控制的功能包

功能包的基本配置

创建名为Estimator的节点（node）

创建名为Controller的节点

创建launch文件

编译功能包

运行

手动控制机器人（Python版）

Tags

FRIENDS
